Product Description

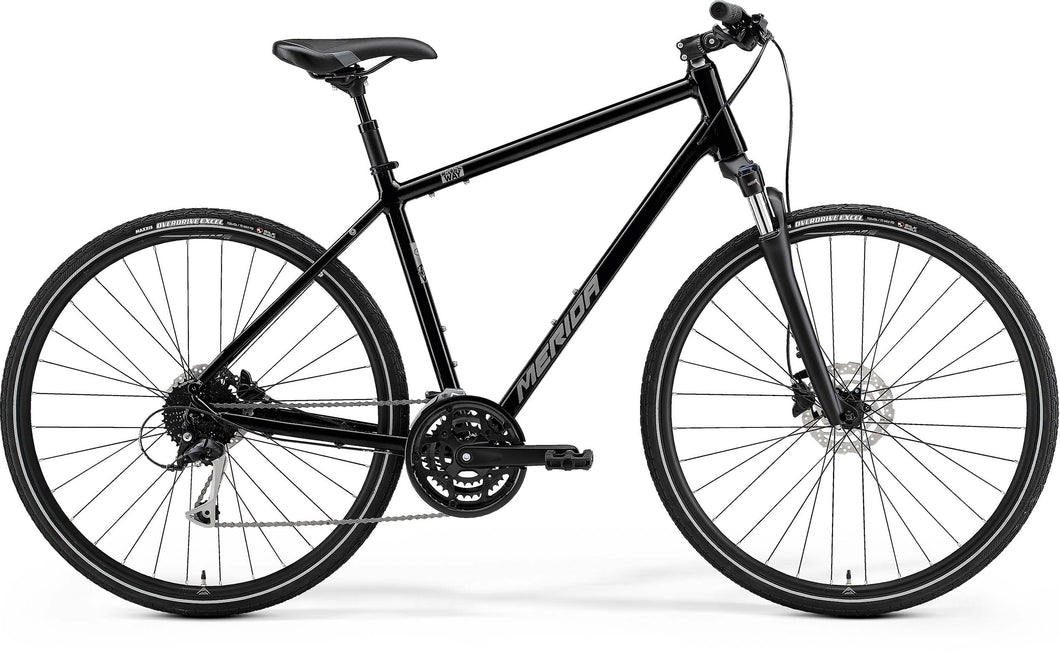

For MY21 the Crossway family gets a makeover. All disc equipped Crossway models get a new TFS frame which uses a much slimmer tube profile giving the bikes a much lighter and sporty look. Cables are internally routed and colour ways are kept simple to maintain the modern appearance.
Specification
| Frame: | TFS - 6061 series double butted and technoformed aluminium tubing with new 'urban' look and internal cable routing. Tapered head tube for confidence-inspiring handling. Equipped with mounts for rack, mudguards and kickstand. |
| Fork: | Suntour NEX HLO; Coil; 63mm travel; Lockout |
| Headset: | Merida M2346 Neck |
| Stem: | Merida Comp TK; aluminium; 31.8mm diameter; adjustable - Length : 80 mm-XXS/XS/S, 90 mm-M/L, 100 mm-XL |
| Bars: | Merida Comp CC; aluminium; 660mm wide; 25mm rise |
| Front Brake: | Shimano MT-200 with Shimano RT10; 160mm rotor |
| Rear Brake: | Shimano MT-200 with Shimano RT10; 160mm rotor |
| Brake Lever: | Shimano MT-200 |
| Front Mech: | Shimano M370 |
| Rear Mech: | Shimano Alivio |
| Shifters: | Shimano Altus |
| Speed: | 27 |
| Rims: | Merida Comp TK; 20mm inner rim width; 17mm profile; Material: aluminium |
| Front Hub: | Shimano TX505; 100x9mm; 32 spokes; Centerlock; Quick Release |
| Rear Hub: | Shimano TX505; 135x9mm; 32 spokes; Centerlock; Quick release |
| Spokes: | Black stainless |
| Front Tyre: | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshild |
| Rear Tyre: | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshild |
| Seat Post: | Merida TK; 30.9mm diameter; 10mm lay back; 40mm suspension travel |
| Saddle: | Merida Cross Sport |
| Chainset: | SAMOX, AF29-321SSS-P chainwheel with 170mm - XXS/XS/S, 175mm - M/XL length crank |
| Bottom Bracket: | FSA TH-7420ST Cartridge Bearing |
| Chain: | KMC M99 |
| Cassette: | Shimano HG200; 11-34 teeth; 9 speed |
| Pedals: | VP Components, VPE-891 |
