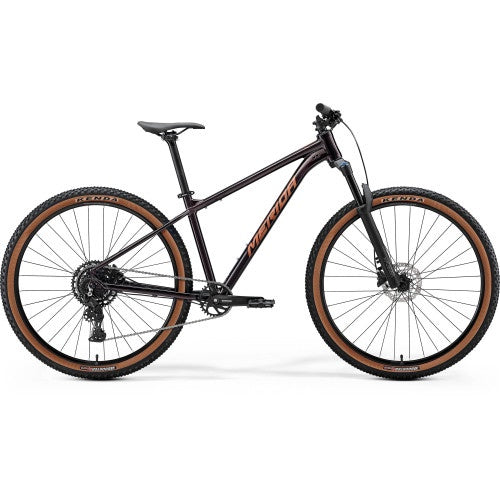

Merida Big Nine 40 - Metallic Black (Red) - MY26

Merida Big Nine 40 - Metallic Black (Red) - MY26

Regular price
£825.00 GBP
Sale price
£825.00 GBP
Regular price
Sold out
Unit price
per
Tax included.

HighlightsUpdated TFS aluminium frame with clearance for 2.4" tyresTrail ready geometry for confident off-road handling120mm X-Fusion Migo 32mm stanchion air fork with lockoutShimano MT200 hydraulic disc brakesShimano 1 x 9 drivetrain29" wheels with Shimano hubs and Kenda tyresSize tuned Merida finishing kitThe start to the "proper" mountain biking journey: 29er aluminium hardtail with trail ready geometry, 120mm air fork with lockout, Shimano 1 x 9 drivetrain and hydraulic disc brakes,



Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.

Specification

Frame
  • TFS V - 6061 aluminium, double butted and technoformed.  Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.4"
Fork
  • X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 29x2.4" max. tyre size
Gears
  • 9
Shifters
  • Rear: Shimano CUES U4000
Rear Derailleur
  • Shimano Cues U4000; GS
Bottom Bracket
  • Shimano UN101 LL123
Chain
  • KMC xGlide
Chainset
  • Shimano Cues UT400-1; 32 tooth chainset; material: aluminium ; Crank length: S - 165mm, (M-XXL) - 170mm
Cassette
  • SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Front Brake
  • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake
  • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Grip
  • Merida Comp TR
Handlebar
  • Merida CC; material: aluminium; 15mm rise; S - 720mm wide, (M-L) - 740mm wide, (XL-XXL) - 760mm wide
Stem
  • Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Head Set
  • FSA NO.55R/57SC/57B
Pedal
  • VP VPE 536
Saddle
  • Merida Comp SL
Seat Post
  • Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
Wheel Size
  • 29"
Rims
  • Merida Comp CC; 20mm inner rim width; material: aluminium
Spokes
  • Black steel
Front Hub
  • Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub
  • Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Front Tyre
  • Kenda Booster; 29x2.4" 2nd color option: Booster 29x2.4 tanwall
Rear Tyre
  • Kenda Booster; 29x2.4" 2nd color option: Booster 29x2.4 tanwall
Colour
  • Metallic Black (Red)
Season
  • 2026
